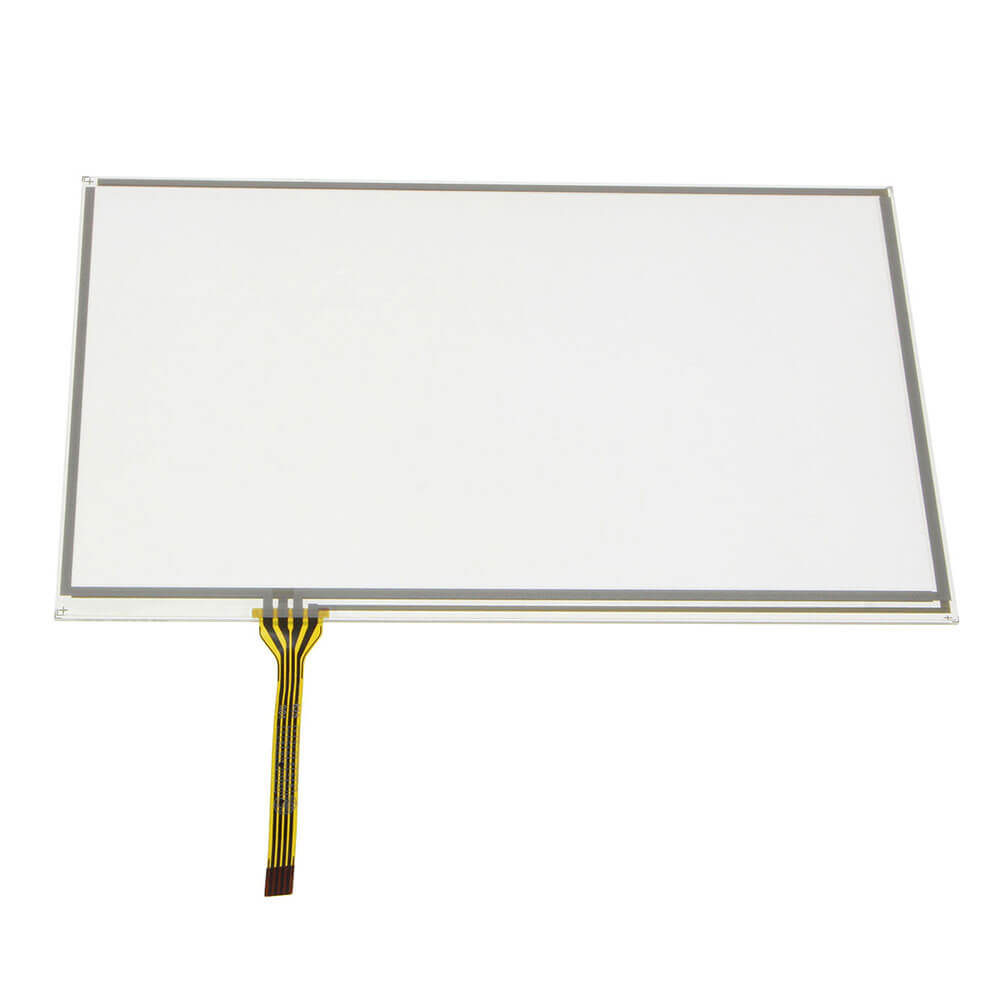

Navigation Touch Screen Glass Digitizer Fit For Toyota® Prius MFD

$35.00 USD

Fit for 2004-2009 Toyota® Prius.
For GPS navigation touch screen digitizer, luxury audio unit, MFD, radio control system.
Replace touch screen having following problems: Loss of response to touch commands, scratches, cracks, dead pixels, or the polarized protection is wearing off etc..
Size: 7.0 inch. 4-pins cable ribbon connector.
Part number: LTA070B510F / LTA070B511F / LTA070B512F / LTA070B513F.

Features & Specifications:

Brand new and high quality, good operation radio touch screen replacement for Toyota® Prius.
For GPS Navigation Touch Screen Digitizer.
Size: 7.0in (170*107.6mm).
View area: 161.9*96.1mm.
Active area: 159.9*94.1mm.
Thickness: 1.4±0.15mm.
Distance from the left edge of the glass to the center of FPC: 43.9mm.
Length of FPC (flexible print circuit): 60.5mm.
Working voltage: 5V.
Circuit class: DC 5V, 1mA.
Interface: 4-pin.
Insulation resistance: ≥20 MΩ (25V DC).
Linear: ≤1.5%.
Light transmittance: ≥80%.
Operating pressure: 10-100g.
Service life time: ≥1,000,000 times.
Working temperature: -10 °C ~ +60 °C, ≤90%RH.
Storage temperature: -20 °C ~ +70 °C, ≤90%RH.
Special feature: Support Can-Bus.
Main material: Glass.
Type: Resistive touch screen.

Compatible with:
Fit For 2004-2009 Toyota® Prius.

Attention:

Installation instructions not included. Tool not included.
It is only a touch panel, not including a LCD display.
Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.
There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.

Package included:

1x Touch screen
